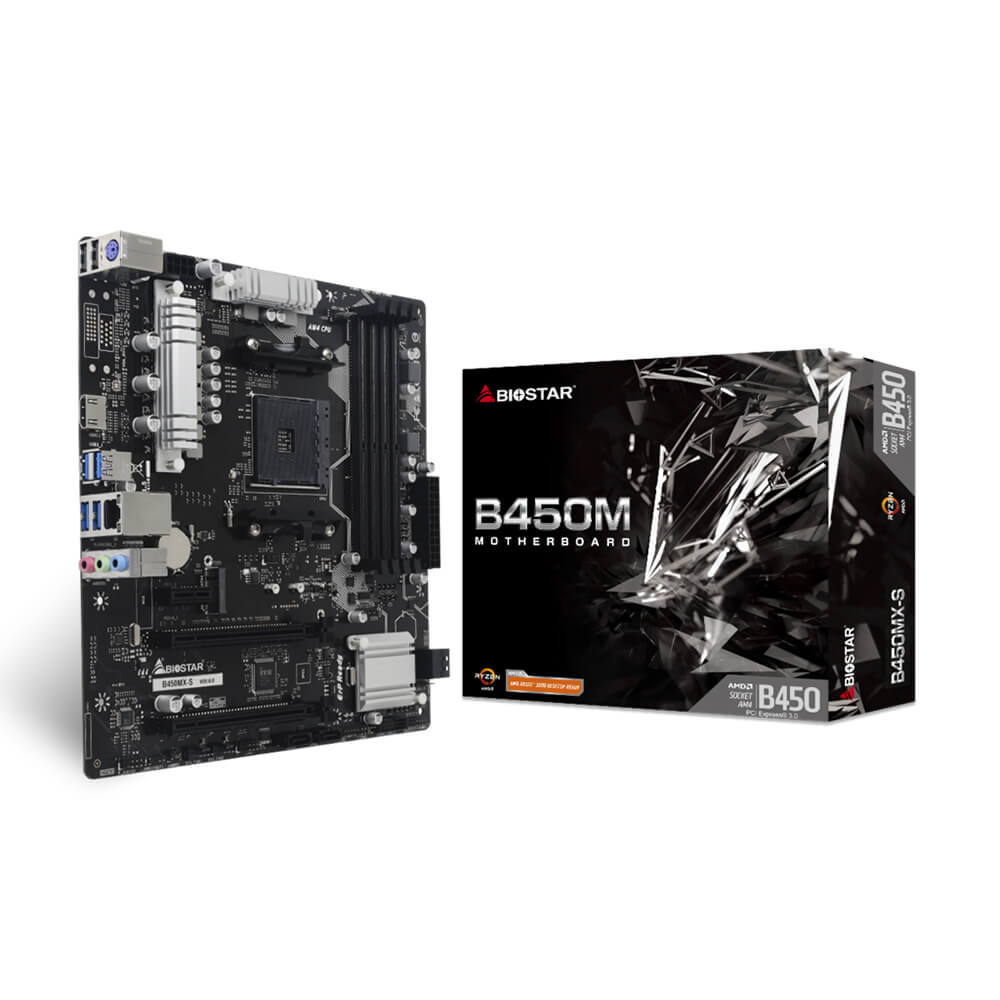

PLACA MAE BIOSTAR B450 AM4 uATX B450MX-S

PLACA MAE BIOSTAR B450MX-S Ver:6.0

Chipset:
– AMD B450

CPU SUPPORT
– Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
– Graphics/Athlon with Radeon Vega Graphics Processors

MEMORY:
– Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
– Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) / 4066(OC)/ 4133(OC)/ 4200(OC)/ 4266(OC)/ 4333+(OC)
– 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
– Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* DDR4 – 2667 only for Ryzen CPU.
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
– By CPU model
– Supports DX12
– Supports HDCP

STORAGE:
– 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
– 1 x M.2 (M Key) Socket:
– Supports M.2 Type 2242/ 2260/ 2280 SSD module
– Supports PCIe 3.0 x4 (32Gb/s) – NVMe/ AHCI SSD
– Supports SATA III (6Gb/s) SSD
* M.2 (M Key) Socket : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU is 16Gb/s.

LAN:
– Realtek RTL8111H
– 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
– ALC887
– 7.1 Channels, High Definition Audio, Hi-Fi (Front)

USB:
– 6 x USB 3.2 (Gen1) ports(4 on rear I/Os and 2 via internal headers)
– 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
– 1 x PCIe 3.0 x16 Slot:
– Supports PCIe 3.0 x 16 mode with AMD Ryzen processors.
– Supports PCIe 3.0 x 8 mode AMD Ryzen with Radeon Vega Graphics processors.
– 1 x PCIe 2.0 x 16 Slot (x4 mode)
– 1 x PCIe 2.0 x 1 Slot
* According to different CPUs will have different speeds.

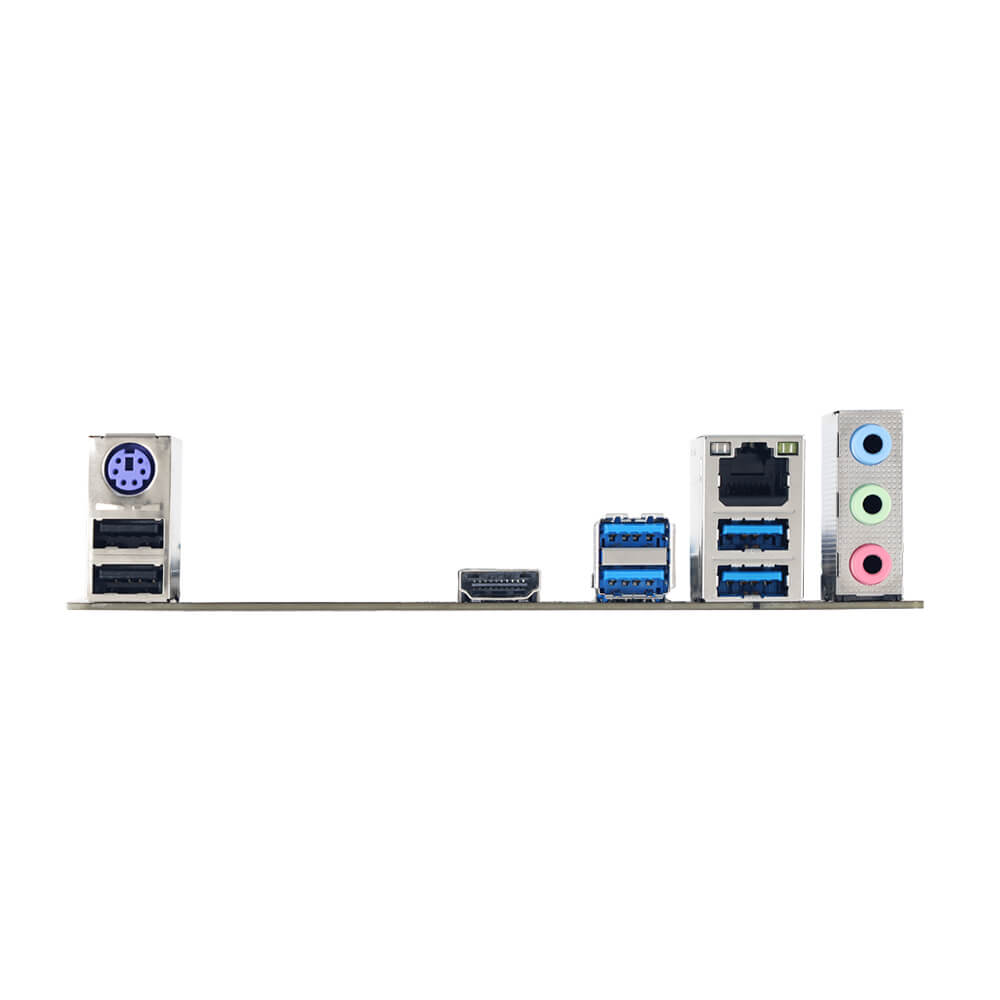

REAR I/O:
– 1 x PS/2 Keyboard/ Mouse Port
– 1 x HDMI Port
– 1 x LAN port
– 4 x USB 3.2 (Gen1) Ports
– 2 x USB 2.0 Ports
– 3 x Audio Jack

INTERNAL I/O:
– 4 x SATA III (6.0Gb/s) Connectors
– 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
– 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
– 1 x 8-Pin Power Connector
– 1 x 24-Pin Power Connector
– 1 x CPU Fan Connector
– 2 x System Fan Connectors
– 1 x Front Panel Header
– 1 x Front Audio Header
– 1 x Clear CMOS Header
– 1 x Internal Stereo Speaker Header
– 1 x S/PDIF out Connector
– 1 x COM Port Header

H/W MONITORING:
– CPU / System Temperature Monitoring
– CPU / System Fan Monitoring
– Smart / Manual CPU Fan Control
– CPU/DDR Voltage Monitoring

DIMENSION:
– Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )

OS SUPPORT:
– Supports Windows 7(64it)/ 10(64bit) / 11(64bit)
– Windows 7(64bit) for Summit Ridge/ Pinnacle Ridge only
* Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE:
– BullGuard

ACCESSORIES:
– 2 x SATA Cables
– 1 x I/O Shield
– 1 x DVD Driver
– 1 x Quick Guide

FEATURES:
– A.I FAN
– PCIe M.2 32Gb/s
