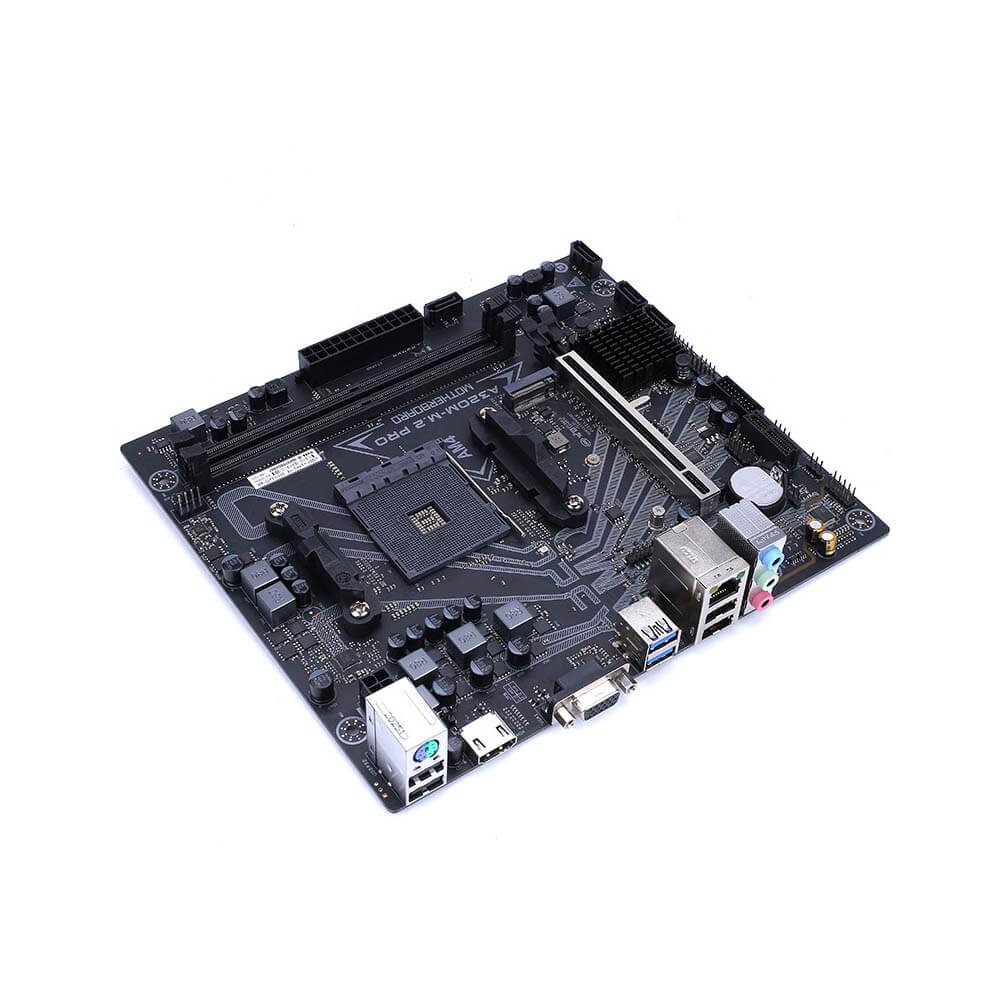

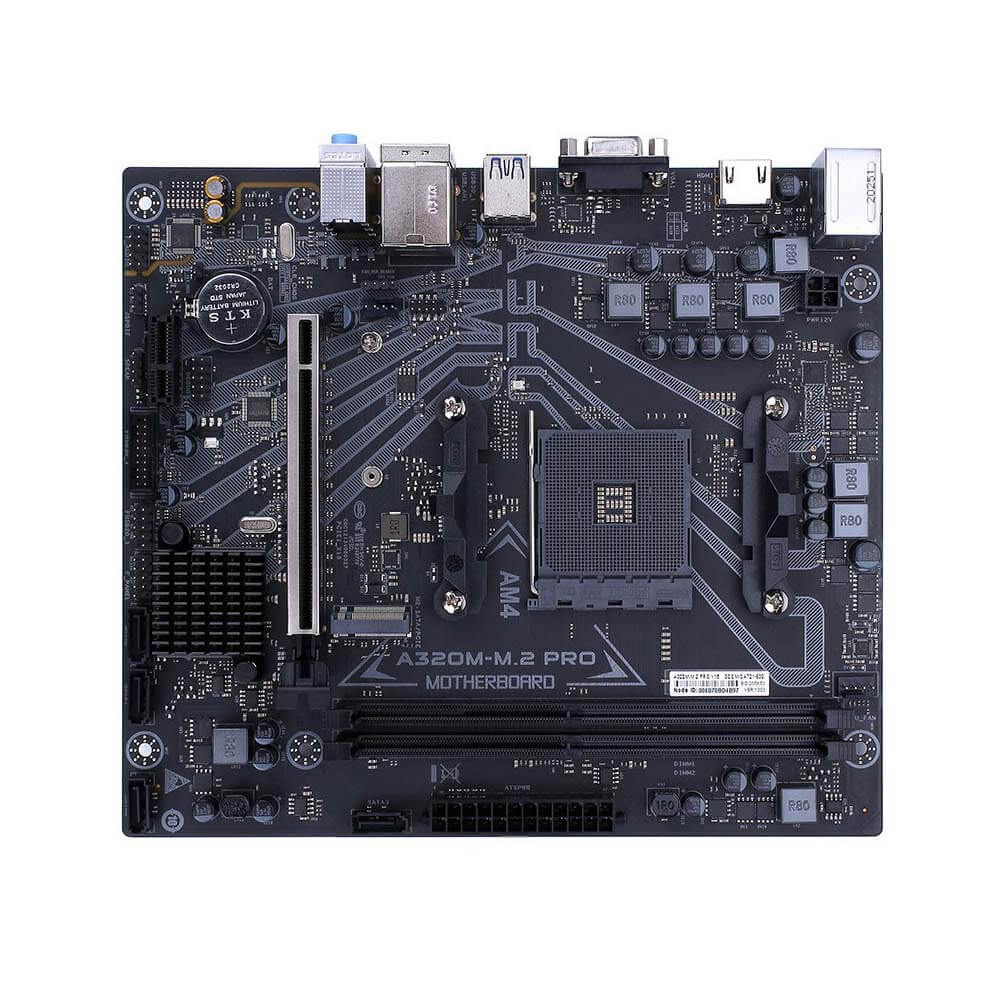

PLACA MAE A320M-M.2 PRO V15 AMD COLORFUL

A320M-M.2 PRO V15

Motherboard Series : AMD chipset,COLORFUL series
Chipset : AMD A320

Processor
– Supports AMD Socket AM4 CPUs

Memory :
– 2 DIMM slots
– support dual channel DDR4-3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz

Graphics Support :
– 1*PCI Express3.0X16 slot

SATA Ports :
– 4*SATA3.0 6Gb/s ports

Board I/O :
– 1*PS2 port
– 1*HDMI port
– 1*VGA port
– 4*USB 2.0 ports
– 2*USB 3.0 ports
– 1*RJ45 1000M LAN
– 3*audio ports
– (onboard: 1*USB2.0 header,1*USB3.0 header)

Expansion Slots :
– 1*PCI Express3.0X1 slot
– 1*M.2 slot;

BIOS :
– 128M UEFI

Power Management
– support 65W processors

Hardware Monitor :
– CPU Fan speed Controlled
– SYSTEM Fan speed Monitoring
– CPU Temperature Monitoring
– System Temperature Monitoring
– Voltage monitoring

LAN :
– 1000M LAN,Provides 10/100/1000Mb Ethernet

Audio :
– ALC662 6-channel audio chipset

Configuration :
– 190 x 215 mm mATX

Other Features
– The two USB ports under the PS2 port support the charging function under the shutdown state, which can be turned off with JKB jumper!
